Peplink BR2 Pro Gigabit Router with Dual 5G Internet

Account Required
Log-In or Register to view pricing.
SKU: MAX-BR2-PRO-5GN-T-PRM Category: Brand:

Brand

The BR2 Pro is not just designed to be tough. Its dual 5G connections, Wi-Fi 6 and PoE input ensure an unbreakable connection in any scenario.

With so many WAN options, the BR2 Pro can seamlessly failover to guarantee your flow of data, even during the most critical circumstances. The Gigabit routing speed and serial port for OOBM allow versatility for any SD-WAN deployment.

Specs

WAN Interface:
2x 10/100/1000/2500M Ethernet1
2x 5G Modems with Redundant SIM Slots
1x USB 3.0 Interface

LAN Interface:
4x 10/100/1000M Ethernet

Wi-Fi Interface:
Simultaneous Dual-Band (2.4GHz / 5GHz)
Wi-Fi 6, 2X2 MU-MIMO
Wi-Fi WAN and/or AP

SpeedFusion features:
Hot Failover2, WAN Smoothing2, Bandwidth Bonding2

Number of PepVPN:
2/53

Features:
Drop-in Mode
Load Balancing/Failover
Ignition Sensing

Router Throughput:
1 Gbps

SpeedFusion VPN Throughput
– No Encryption: 400 Mbps
– 256-bit AES: 200 Mbps

Recommended Users:
1 – 150

5G Cellular Data Rate4 (Downlink/Uplink):
5G: 4 Gbps / 700 Mbps
LTE CAT-20: 2 Gbps / 150 Mbps

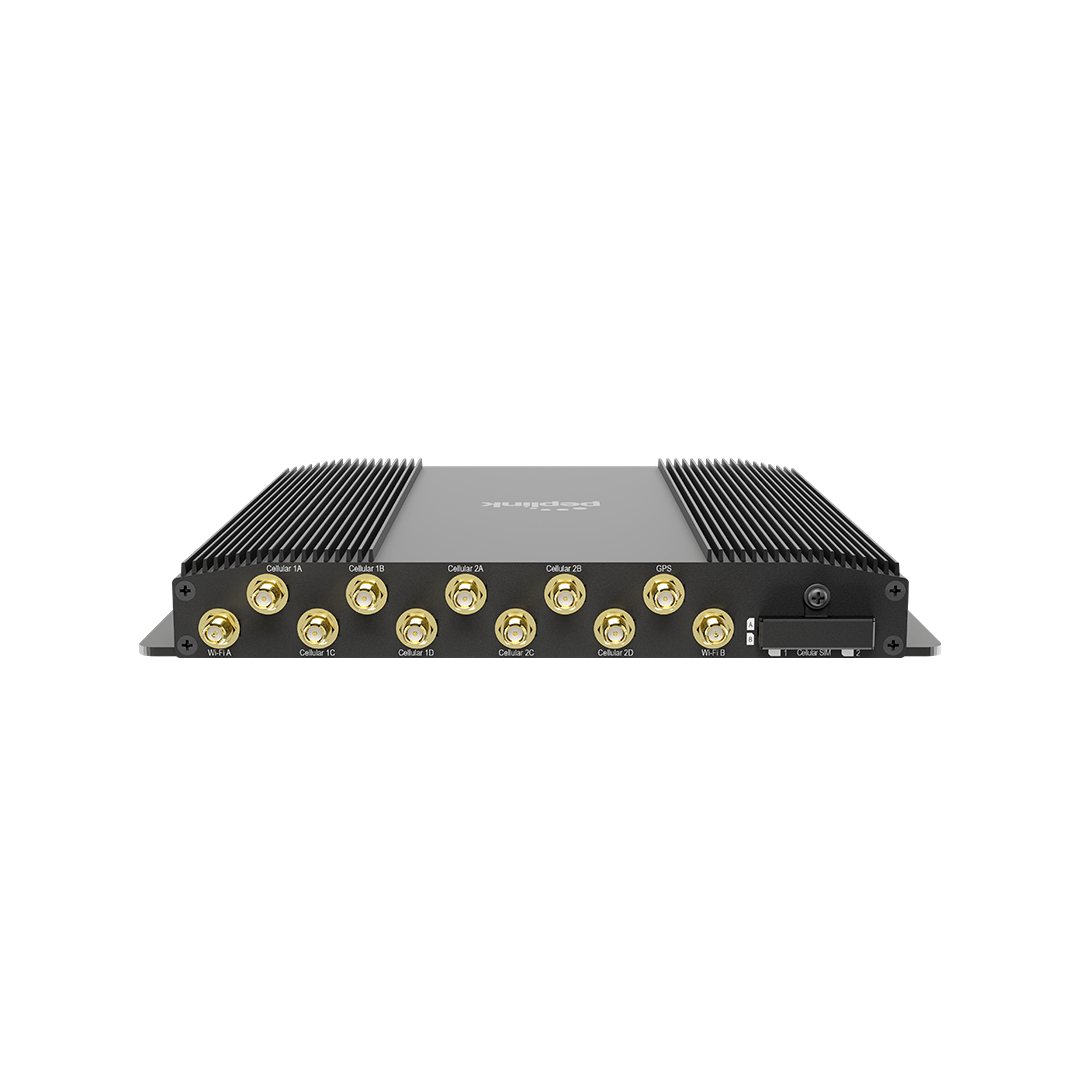

Antenna Connectors:
8x SMA Cellular Antenna Connectors
2x RP-SMA Wi-Fi Antenna Connectors
1x SMA GPS Antenna Connector

Power Input:
AC Adapter: AC Input 100V-240V / DC Output 12V
DC 10-30V
Passive PoE 48-56V
802.3at PoE5

Power Consumption:
12W (nominal), 30W (max.)

Dimensions:
8.58 x 7.68 x 1.61 inches

Weight:
2.42 pounds

Operating Temperature:
-40°– 149°F / -40°– 65°C

Humidity:
15% – 95% (non-condensing)
