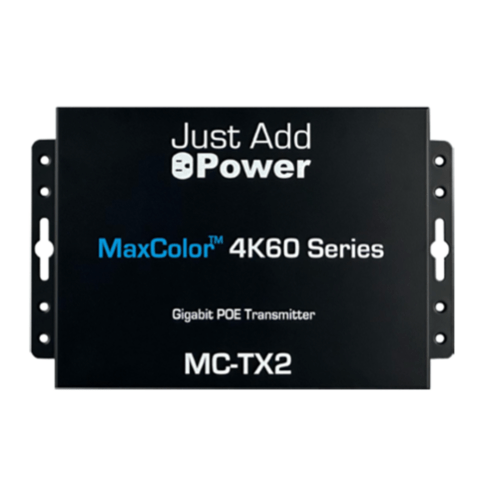

4K60 Transmitter with KVM Support, Audio Return Channel & Fiber Port Connection
The MaxColorTM 4K60 Series 2 Transmitter includes everything you love about the MaxColor Series 1 Transmitter, but now with KVM support, audio return channel (ARC), and a fiber port connection. The MC-TX2 Transmitter natively support 4K60Hz in and out, allowing end users to play High Dynamic Range video, including Dolby Vision and HDR10+ formats, using the growing number of Ultra 4K sources and devices. With MaxColor Series 2, 4K60/4:4:4/36-bit color video can be distributed over a 1Gb managed network using existing CatX (Cat5e minimum) cable , or over 10g fiber cable, so that you can take advantage of using the cable that best fits your project.
The new ARC feature allows you to easily send audio from a TV connected to a MaxColor 2 Rceiver and send the audio across the network to another MaxColor 2 Receiver connected to an audio video receiver or another ARC enabled amplifier – making project design even easier and more flexible.
Use MaxColor 4K60 Transmitters and Receivers to create your new system, or bridge them to a system with 3G Ultra models to support a variety of source and screen formats.
|Dimensions & Weight||202x30x131 mm
|Encryption||AES256 Hardware Based Crypto Engine
|Operating Temp||0-60 °C / 32-140 °F|
15 watts maximum
|Ports||1x RJ45 (1GbE Gigabit Ethernet LAN)
1x Shared SFP (1 GbE Gigabit Ethernet LAN) 1x HDMI Input
1x HDMI Output (Loopout splitter)
3x 3.5mm (Stereo Out, IR Out, 2-Way RS232) 1x USB 2.0 Type-C
|Power Supply (not included)||DC5~18V, 15W 5.5mm/2.1mm, positive tip|
|Supported Audio & Video||Audio: Up to Dolby Atmos, DTS:X, HD/HBR Audio, 12-channel LPCM
Video: Up to 4K60 with 36-bit color YCbCr444/422/420, RGB444, ICtCp444 HDR10, HDR10+, HLG, Dolby Vision, SDR
|Audio||Supports all lossless audio formats
Audio Return Channel (ARC)
|HDR Support||HDR10, HDR10+, HLG, Dolby Vision, and SDR|
|Integrated Endpoint Control||Control endpoints with CEC, IR, RS232|
|Color Depth||Supports deep color up to 36-bit|
|Image Pull||Preview an image from any source or display, in any web browser or control system, at up to 30 fps|
|KVM Support||Provides local and remote access to all computers on the system with built-in keyboard, mouse, touchscreen, and webcam interface|
|Scalability||Fully compatible with all MaxColor products. Can run parallel and or be bridged with all 3G Ultra models
Bridging requires additional hardware
